How to Build a Bookshelf Diorama That Doesn't Look Like a Kit

Somewhere between scrolling Reddit at midnight and opening seventeen browser tabs, you decided you wanted a bookshelf diorama. Fair enough. The photo that got you was probably already lit, already finished, wedged between two books like the shelf had just cracked open into another world. What the photo didn't show you was the three weekends it took to get there, or the failed first box still sitting in a bin bag under the desk.

This guide covers the actual decisions: kit or scratch build, how deep your shelf needs to be before any of this works, which materials hold up past the first year, and how to build something that reads handmade rather than like it came flat-packed from a warehouse in Shenzhen.

What is a bookshelf diorama, and what is a book nook?

Short answer: you're describing the same thing. A bookshelf diorama is a wooden box with a miniature scene inside it, built to stand upright in the gap between your books so that, from the front, your shelf looks like it just cracked open into somewhere else entirely. A Japanese lantern alley. A tiny forest path. A library corridor inside an actual library, which is either very meta or very satisfying depending on your personality. Depth on most builds sits between 20 and 25 cm; width and height are just whatever your shelf gap gives you to work with.

Book nook is what the internet decided to call it when these things went viral around 2018 to 2019, mainly because "book nook" is catchier and easier to hashtag than "bookshelf diorama." The name stuck disproportionately hard. So now you've got kit manufacturers listing "diorama book nook," builders saying "shelf diorama," and buyers typing all three into Google and arriving at the exact same products. They're the same format. The naming is just a mess.

Bookshelf insert, shelf diorama, book nook – why so many names?

The object has been around a lot longer than the search terms. Miniaturists were building shelf inserts well before "book nook" existed as a category. What happened around 2018 to 2019 was that Japanese builders popularised the lantern-lit alley aesthetic on Instagram, and the pictures spread faster than any agreed-upon name for what they were. So the terminology fragmented. "Japanese bookshelf diorama" became a style shorthand; "book nook" became the hashtag; "bookshelf insert diorama" became what people typed when they were being specific about the format.

How deep does a bookshelf diorama need to be?

Depth is the number people skip, and it's the one that actually determines whether this works. The box needs enough internal depth to create the illusion that something recedes into the shelf. It also has to physically fit your shelf without pushing your books forward or sticking out past the spine line. Those two requirements are sometimes in direct tension with each other, especially on shallow IKEA Billy shelves.

Fifteen centimetres (6 inches) is about the floor. Below that, forced perspective is almost impossible, and the scene reads flat regardless of how well it's built. Most kits sit somewhere between 20 and 25 cm internally, which gives you room for two or three receding planes. Scratch builds can push deeper if the shelf has the space.

Measure your shelf before you build anything

Front-to-back first. Measure from the back wall to the front edge of the shelf board – that's your maximum external depth. Subtract the back panel thickness (3 mm for standard plywood), and you have your actual usable internal depth. Write that number down before you look at a single kit.

Then height: shelf surface to the underside of the shelf above it, minus a few mm of clearance so you can actually lift the box in and out without scraping. Then width: the gap between your books, or the gap you're willing to make.

Three numbers, written down, before you order anything. The single most common reason a bookshelf insert diorama arrives and doesn't fit: the buyer measured height and width but forgot depth entirely. Sticking out past the spine line of your books doesn't just look wrong; it breaks the whole illusion.

Should you buy bookshelf diorama kits or build from scratch?

Most first builds are kits. Most second builds are from scratch. That's not a coincidence – kits are useful as a way to understand how the box works, how lighting hides, and what forced perspective actually looks like at this scale before you start making your own decisions about dimensions and materials. They're not a failure mode. They're just a faster path to understanding what you're actually building.

What do you actually get in a book nook diorama kit?

A book nook diorama kit usually comes with a pre-cut wooden box shell, laser-cut internal panels and facades, a set of miniature props (resin or balsa, depending on the kit tier), LED strip lighting with a battery pack, and printed instructions. Some include paint. Most don't, and the ones that do usually include very little of it.

What kits don't give you: the ability to change dimensions, a scene that's actually yours, or material quality that holds up close. The resin props in most mid-range kits look fine from 60 cm away. Under close inspection, they read as exactly what they are. If that matters to you, build from scratch.

That said: if you want to see how internal layering works, how lighting hides behind facades, and what forced perspective looks like at shelf scale before committing to a scratch build, the diorama kit page is a good starting point.

When is building a diorama from scratch worth it?

Building from scratch is worth it when you want a specific scene, non-standard dimensions, or material quality that kits can't provide. It's also the right call if your shelf is an unusual size, since most kits come in fixed widths and heights that won't suit every bookcase.

Scratch builds take longer and need more planning, but the core skills aren't harder than kit assembly. If you've built anything at 1:12 scale before (a DIY mini concrete house model, a painted scene, a terrain tile), the process will be familiar. The bookshelf format adds one constraint (the box must fit the shelf) and one goal (it must read intentional from the front).

Diorama making from scratch requires:

• a box built to your shelf measurements
• a scene plan with at least two receding planes
• surface materials for floor and walls
• props or structures at scale
• a lighting plan you've committed to before the box closes

What materials make a realistic diorama?

Realistic diorama work comes down to two things: material choice and surface finish. The same layout built in card stock and built in plywood with micro brick reads like two different skill levels, even if the structural logic behind them is identical.

Paper, plywood, resin or real brick – which one lasts?

Paper and card stock: fast and cheap, good for prototyping a scene layout before you commit to better materials. Paper warps with paint and responds to humidity. A paper diorama will degrade visibly within a couple of years in a room with seasonal temperature swings. Not recommended as a final material for anything meant to last on a shelf.

Plywood (3mm or 4mm): the standard box material. Cuts cleanly with a craft knife or scroll saw, takes paint well, holds screws and hinges if you want an openable back panel. Internal panels and facades in plywood give the scene a structural solidity card simply can't match.

Resin: common in kit props, fine for small accent pieces. Heavier than it looks. Takes paint and drybrushing well. Not ideal for structural elements; resin facades warp and crack over time, particularly at thin cross-sections.

Micro brick and concrete materials: the highest-quality option for floors, walls, and structural facades. Real-scale miniature bricks laid in mortar produce a surface texture that no printed paper or cast resin can replicate under close inspection. If a realistic diorama is what you're building toward, the floor and wall finish is where material investment shows most. Browse mini materials for micro bricks, aggregate mixes, and texture compounds at the right scale.

For a diy diorama built to last: plywood box, micro brick or textured compound for surfaces, resin or carved wood props, LED strip lighting on a low-voltage circuit.

How to build a bookshelf diorama step by step

This is a simplified build sequence for a first scratch build. Adjust based on your scene and shelf dimensions.

Building the box

Cut five panels: back, bottom, top, and two sides – the front stays open. For a 3 mm plywood box with 25 cm depth, 18 cm width, 22 cm height (usable internal dimensions), add 6 mm to the external width and height to account for the two walls. Sand all interior faces before assembly; painting inside corners after the box is closed is miserable. Prime and base coat the interior before assembly too.

Assemble back and sides first, then add the bottom. Leave the top off until the scene is finished. You need overhead access for lighting and detail work. Wood glue and clamps, or small brad nails if you have a pin gun.

Route any wiring channels before closing anything. If your LED strip enters from the back, drill the cable hole now. If it runs along the top interior, cut the channel into the top panel before assembly.

How do you make a shallow shelf look deep?

Forced perspective. Objects in the foreground are built at full scale; the same objects placed deeper in the scene are built proportionally smaller. A door frame at the front might be 35mm tall. The same door frame near the back is 18mm. The visual difference reads as distance, not size. It's the same principle architects have used since the Renaissance – miniature builders just apply it at a scale that fits between two paperbacks.

Two or three receding planes are usually enough for a convincing result. Foreground (the floor and elements nearest the viewer), mid-ground (a facade or interior wall), and background (a painted or printed backdrop with reduced-scale detail).

Put your focal point (the lit window, the detailed shopfront, the miniature sign) in the mid-ground plane. That's where the eye goes first. Everything else should recede from it, not compete with it.

For a box under 15 cm deep, consider a mirror at the back wall. It doubles the apparent depth and adds a reflected light source. The mirror edge needs to be hidden behind the final facade layer; visible mirrors break the illusion immediately.

Lighting a bookshelf insert diorama without visible wires

Plan your lighting before you build the scene. Retrofitting LED wiring into a finished diy shadow box diorama without dismantling it is difficult.

LED strip (warm white, 3000K) sits along the top interior behind a baffle: a thin strip of plywood or card that hides the strip from direct view while letting light fall into the scene. The power cable exits through the back panel at the top edge, where it runs against the shelf back wall and disappears.

For individual lit windows: 3mm warm yellow LEDs, wired in parallel, with cables run through small holes drilled through the facade panel, soldered to a shared rail hidden behind the facade. The LED housing sits against the back face of the panel and points through the window opening.

Keep all connections accessible. A hinged back panel makes battery changes and repairs straightforward. If you're using a kit that has a fixed back, commit to your battery position before you close it.

Shadowbox diorama: a smaller first project

A shadowbox diorama is a shallower version of the same format, typically 5 to 8 cm deep instead of 20 to 25 cm. The scene is more bas-relief than full interior: a flat background with layered paper-cut or resin elements at different depths to create dimension.

For anyone not ready for a full bookshelf insert build, a diy shadow box diorama is a better starting point. The construction is simpler (no forced perspective needed, lighting optional), materials cost less, and the whole thing can be done in a single session.

Shadow boxes also work as wall pieces rather than shelf inserts. A completed shadowbox diorama in a deep picture frame sits in a different context entirely. It's a display object, not a shelf feature, and it doesn't need books on either side.

3d shadow box diorama variations

The 3d shadow box diorama takes the layered paper-cut format and adds physical depth with foam board spacers between layers. Each layer (background, mid-ground, foreground) is cut from paper or thin card and spaced 10 to 15mm apart. LED lighting between layers makes each plane glow on its own.

This format works especially well for nature scenes (forests, mountains, underwater) where forced perspective is less critical. The visual effect comes from light diffusing between the layers rather than scale tricks. Build time is much shorter than a full shelf insert. The result photographs well and fits a standard shadow box frame from any craft shop.

How to display miniatures so they don't disappear on the shelf

A finished miniature build on a bare shelf reads as clutter. The same build in a defined frame (a box, a platform, a recessed space) reads as a deliberate display. The object hasn't changed. The context has.

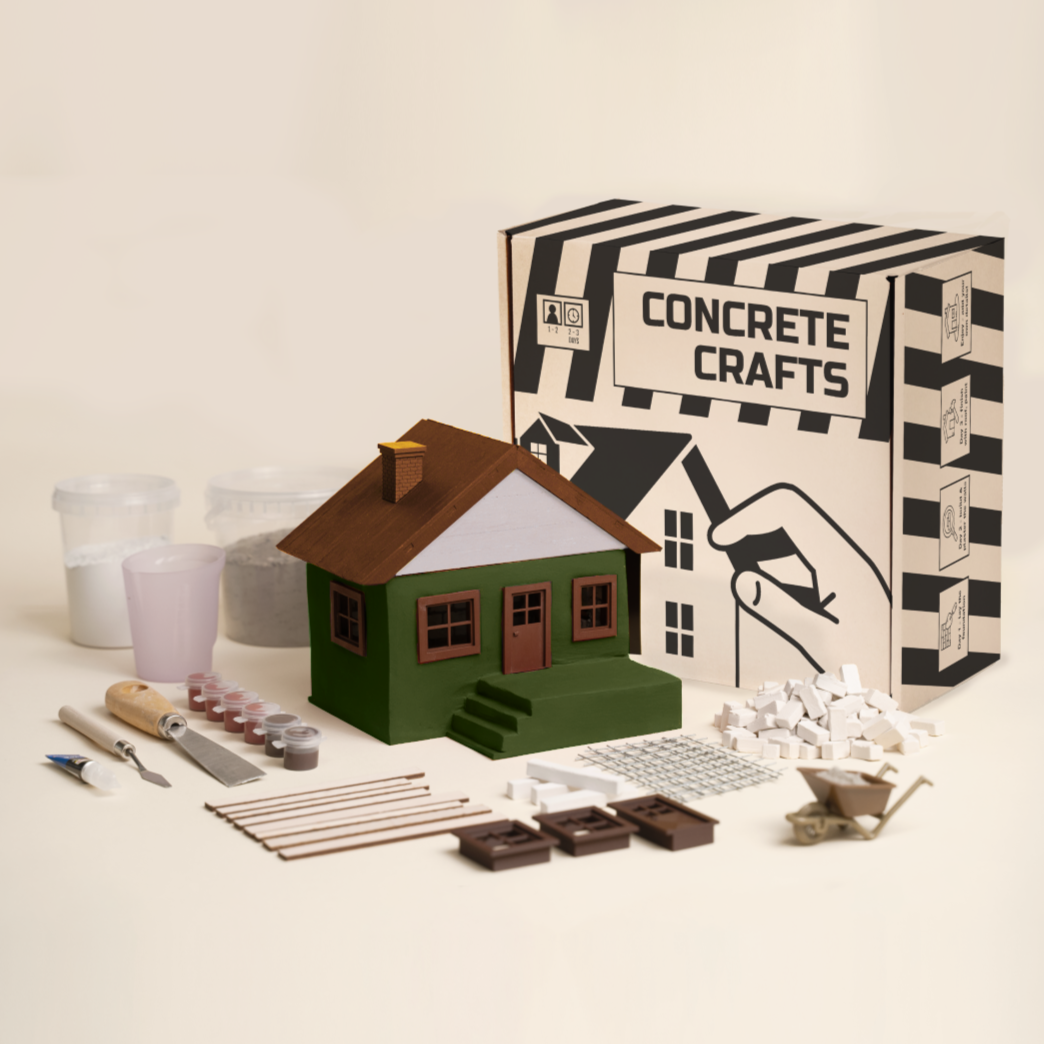

If you have a completed miniature build (a concrete house model, a painted scene, a terrain piece) and want it to live on a shelf rather than a table, the shelf insert format is the most effective solution. Build a simple box to your shelf dimensions, base coat the interior to complement your build, and set the piece inside. The box creates the boundary that tells the eye this was placed, not dumped.

Miniature display ideas for a finished build

Recessed shelf platform: build a shallow box (8 to 10 cm deep) with a raised interior platform and neutral interior paint. Add a simple LED bar along the top interior. The platform lifts the piece out of the shelf shadow; the lighting separates it from everything else on the shelf.

Open-front diorama box: same box construction as a bookshelf insert but without a rear scene. Just a painted interior with your miniature as the centrepiece. Works well for architectural models and single-building builds where the piece itself carries the visual interest.

Modular shelf inserts: if you have multiple builds, make a series of matching boxes at the same height and depth. Each box houses one piece. Side by side on the shelf, they read as a collection rather than scattered objects.

Labelling: a small label inside the box (build name, date, scale) adds context without crowding the display. Place it on the base, inside the front edge, visible from above when someone leans in to look.

FAQ

How long does it take to build a bookshelf diorama?

A kit build runs 8 to 15 hours across two or three sessions, depending on complexity and whether painting is included. A scratch build from raw materials takes 15 to 30 hours for a first attempt. Box construction, priming, scene building, lighting, and finishing all take longer until you've done it once. Second builds are noticeably faster.

Will a bookshelf diorama damage or mark my books?

Not if it's sized correctly. A bookshelf insert diorama that fits the gap properly stands on its own weight without pressing against the books. The risk is a box that's a few millimetres too wide; it will lean and press. Add 2mm of clearance on each side when cutting. Books shift slightly with seasonal humidity changes, and a box that sits perfectly in summer may be tight by January.

Can you put a bookshelf diorama on an open shelf, or does it need books on both sides?

Books on both sides are the standard display method, but they're not structurally required. A bookshelf diorama stands on any flat surface. On an open shelf without books, it reads as a decorative object rather than a shelf insert. The distinction is visual, not functional. Some builders mount a small L-bracket at the shelf back to hold the box upright when there are no books to lean against.

Start with something you can actually finish

The biggest reason first dioramas stall is scope. A 400mm-deep scene with six light circuits and hand-sewn curtains is a second or third build. The right starting point is a contained, forgiving project where the box is pre-made and the satisfaction is immediate. The DIY Mini Concrete House Model Kit gives you a finished structure on day one. Cast it, let it cure, then put all your energy into the scene around it. That's the version that actually makes it onto the shelf.
